PLC Control 3 In 1 Water Filling Machine SUS304 With Screw Cap
Quick Detail:
Machine: Small Bottle Automatic Water Filling Machine Monoblock
Applicative Bottle: PET bottle
Applicative cap: Screw cap
Applicative volume: 0.3-2L
Applicative liquid: non gas water
Production Capacity: 12000-15000bph
Machine construction: washing filling capping 3 in 1
Advantage: USA - Germany technology
Description:
1. The 3 In 1 Water Filling Machine is full automatic machine with PLC control, client only need to set datas in touch screen for speed regulation, and choose semi-auto or automatic working status. There is automatic fault advice and alarm when there is mistake happen in the machine. It is easier for client to find machine problem by themselves during daily use.
2. The 3 In 1 Water Filling Machine is composed by rotary washer, normal pressure filler, screw type capper and conveying system. More heads, higher capacity.
3. The 3 In 1 Water Filling Machine is using rotary gravity filling technology, it makes sure filling is fast and stable, filling lever is same bettween different bottles. Also it is very easy for client themselves to adjust water lever as they want.
4. The speed of 3 In 1 Water Filling Machine is higher than traditional linear type machine.
5. It is used for filling all kinds of non gas water, such as still water, mineral water, flavored water, spring water, oxygen water, hydrogen water.
6. The usual production capacity is in 1000-24000bph, 0.2-2L PET bottle is available.
Specifications:
| Model | CGF8-8-3 | CGF12-12-4 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Washing Head No | 8 | 12 | 18 | 24 | 32 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 |
| Capping Head No | 3 | 4 | 6 | 8 | 10 |
| Rated Capacity (500ml) | 3000BPH | 4000BPH | 7000-8000BPH | 10000-15000BPH | 15000-20000BPH |
| Overall Size | 1900*1420* 2000mm | 2200*1600* 2300mm | 2450*1900* 2300mm | 2750*1180* 2400mm | 4000*2300* 2300mm |
| Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T |
| Power (KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
| Rated Voltage | Customized | Customized | Customized | Customized | Customized |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project

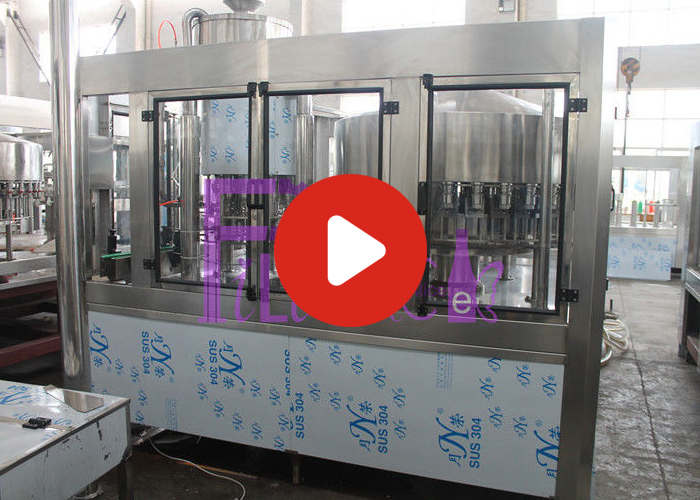

please kindly click the play button to watch the video
