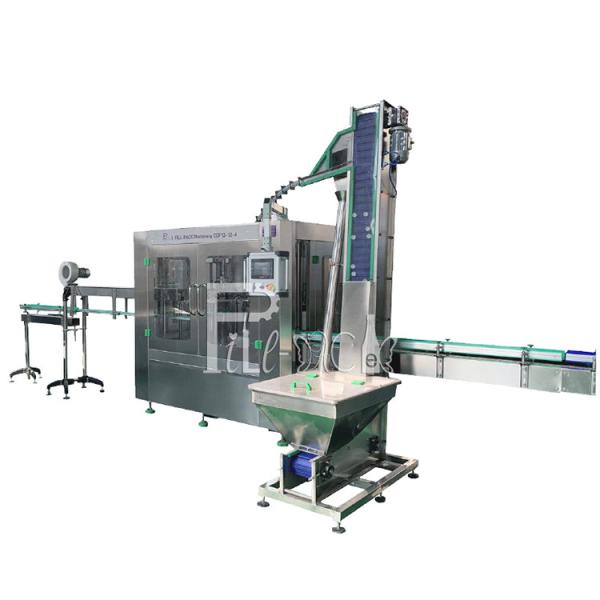

Mineral Drinking Water Filling Machine 3000BPH With PLC Control

Brand Name : FillPack

Model Number : CGF8-8-3

Certification : CE / ISO9001

Place of Origin : Zhangjiagang, China

MOQ : 1 set

Price : 11500USD/unit

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 10 Sets Per Months

Delivery Time : 25 Working Days After Deposit

Packaging Details : sea worthy packing

Model : CGF8-8-3

Capacity : 3000BPH

Bottle material : Plastic

Bottle volume : 0-2L

Function : rinser-filler-capper

Filling Material : Milk, Water

Key Selling Points : Easy to Operate

Core Components : Motor, Pump,PLC

Contact Now

Fully Automatic 3 in 1 Small Bottle Mineral Pure Drinking Water Filling Machine

CGF8-8-3
Product Capacity:2000BPH@500ml
Product Features:
1. The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

6. The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Technical Parameters:
Model
CGF8-8-3
Dimensions
1800*1500*2300mm
Capacity
2000BPH
Bottle Type
PET Bottles
Filling Range
200ml---2000ml
Cap Type
Plastic Screw Cap
Voltage
220/380V
Suitable For
Non-carbonated Water
