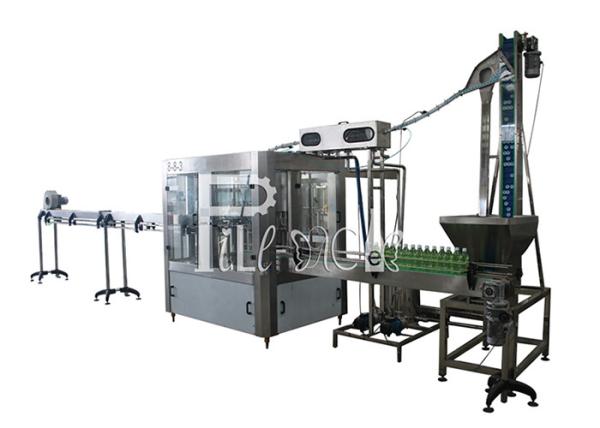

Monoblock 2L Automatic Water Bottling Machine Compact Structure

  • 1
  • 2

Brand Name : FillPack

Model Number : CGF8-8-3

Certification : CE / ISO9001 - 2008

Place of Origin : jiangsu, China

MOQ : 1 set

Price : 12000-30000USD

Payment Terms : TT & L/C, D/A, D/P, MoneyGram

Supply Ability : 20 Sets Per Months

Delivery Time : 30 Working Days After Deposit

Packaging Details : Wooden Case Package

Application : plastic bottle water

Automation : Auto

Suitable Bottle Size : 0.3-2L PET Bottle

Fuction : 3 in 1 monoblock

Capacity : 3000BPH

Warranty : 1 Year

Contact Now

Automatic small 0-2L bottle water filling / bottling machine / equipment / device / unit / line

Monoblock 2L Automatic Water Bottling Machine Compact Structure
Model
CGF 8-8-3
Capacity(B/H)(500ml)
2000-3000
Bottle size
Neck:φ20-50mm;Height:150-320mm
Water pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Washing station
2
Dripping station
2
Filling precision
<+1MM
Air pressure
0.4Mpa
Air consumption (m³/min)
0.3
Power(kw)
4
Weight(kg)
1500
Dimension(L*W*H)(mm)
1800*1500* 2000

Monoblock 2L Automatic Water Bottling Machine Compact Structure

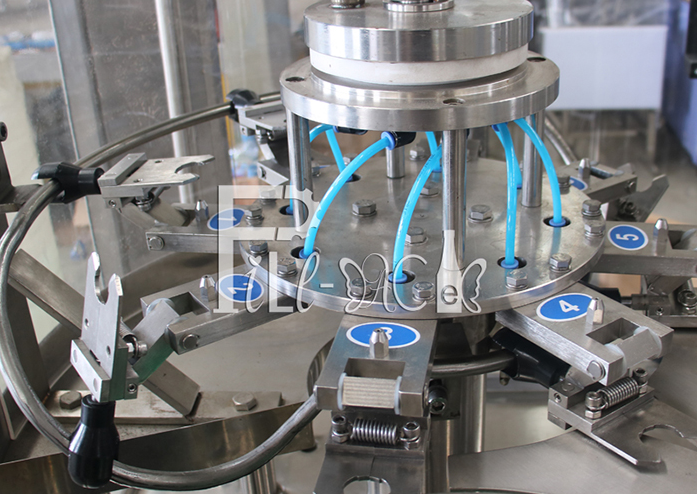

Rinsing part

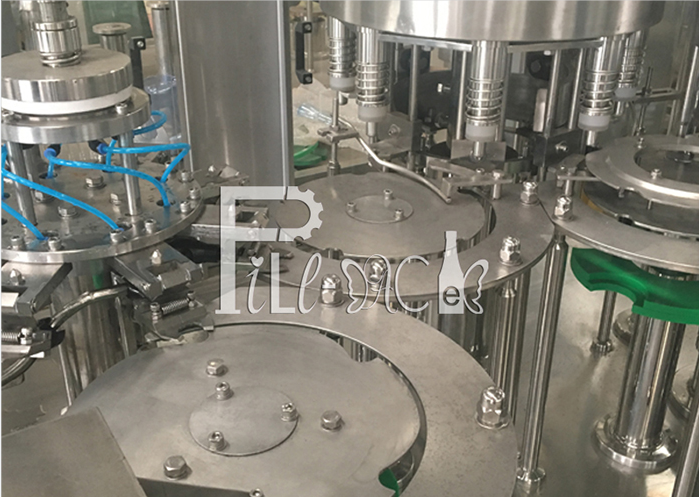

Filling part

Monoblock 2L Automatic Water Bottling Machine Compact Structure

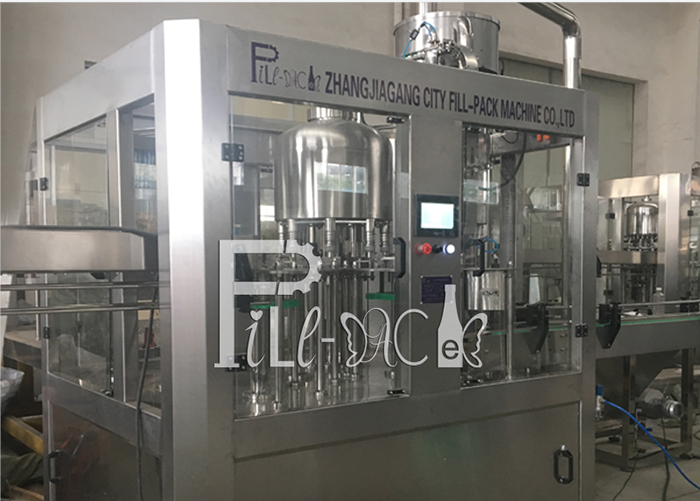

Capping part
