500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line

Name: 500ml 1L 2L PET Drinking Water 3 In 1 Monoblock Production Equipment Plant Machine System Line
Brand: FillPack
Price: 20000 USD

Quality 500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line wholesale

Brand Name : FillPack

Model Number : CGF50-50-12

Certification : CE / ISO9001 - 2008

Place of Origin : Zhangjiagang, China

MOQ : 1 set

Price : 20000-40000USD

Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram

Supply Ability : 15 Sets Per Months

Delivery Time : 30 Working Days After Deposit

Packaging Details : Wooden Case Package

Capacity : 3000BPH

Suitable Bottle Size : 0.3-2L PET Bottle

Automation : Automatic

Bottle Volume : 200ml-2000ml

Dimension(L*W*H) : 2100*1750*2100mm

Voltage : 380V 50Hz

Contact Now

Decription of CGF50-50-12 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

>>>Characteristics:
★The 500ml water production machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
★The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

★1.Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
★2.By adjusting the height of the rotary parts to adapt for different bottle height.

★1) Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
★2) This filling system has an automatic temperature control system.

This 500ml water production machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.
A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

Parameters
Model	CGF50-50-12
Capacity(B/H)	24000
Bottle size	Neck :φ50-100mm:Height:150-320mm
Water pressure	0.18-0.25Mpa
Water consumption(kg/h)	1000
Washing station	18
Loading-Dripping-discharge station	2-2-2
Filling precision	<+1MM
Air pressure	0.5Mpa
Air consumption (m³/min)	0.3
Power(kw)	8
Weight(kg)	4000
Dimension(LWH)(mm)	455035002400 mm

Electrical apparatus
Transducer	Simens-Germany
Touch screen	Simens-Germany
PLC	Simens-Germany
Stabilized voltage supply	MingWei-TaiWan
Contactor	Schnider-French
Approach switch	Schnider-French
Air switch	Schnider-French

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line

We have 3-in-1 washing-filling-capping machine for 0-2L bottle and 3-10L bottle.

We also have linear type washing-filling-capping machine for 0-2L bottle and 3-10L bottle.

The capacity of linear type is not faster than 3-in-1, and it's floor area is slightly larger, but the price is more cheaper than 3-in-1.

Our Washing-filling-capping machines (3-in-1 and Linear type)
3in1(0-2L bottle)	Capacity(bottle per hour)	3in1(3-10L bottle)	Capacity	Linear type	Capacity
CGF8-8-3	2000-3000BPH	CGF8-8-3B	0-1000	CGF4-4-1	500BPH
CGF12-12-4	3000-4000BPH	CGF12-12-4B	0-1500	CGF6-6-1	750BPH
CGF18-18-6	6000-7000BPH	CGF18-18-6B	0-2500	CGF8-8-1	1000BPH
CGF24-24-8	11000-12000BPH	CGF24-24-8B	0-3500	CGF10-10-1	1500BPH
CGF32-32-10	14000-15000BPH	CGF32-32-10B	0-5000	CGF12-12-1	2000BPH
CGF40-40-10	19000-20000BPH
CGF50-50-12	23000-24000BPH

More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.

Product Tags:

water production line

water bottle filling machine

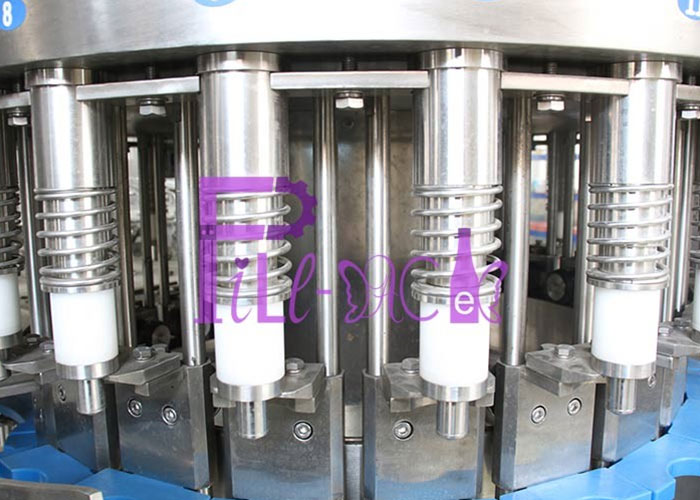

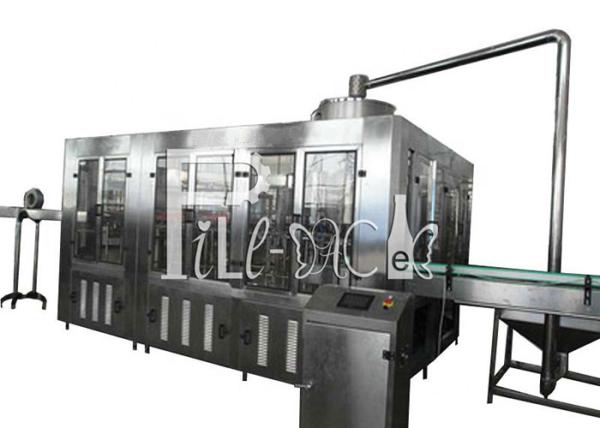

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Production Equipment / Plant / Machine / System / Line Images
